LED Stadium Light FL02

Size
  • Choose Shape and Size: Browse our shape and size options and select the best fit for your design.
  • Confirm Order: Approve the mockup and order details, and we will begin production.
  • Fast Production: Efficient production process ensures your order is completed in a short time.
  • Global Shipping: We support global shipping to ensure your products reach you quickly.

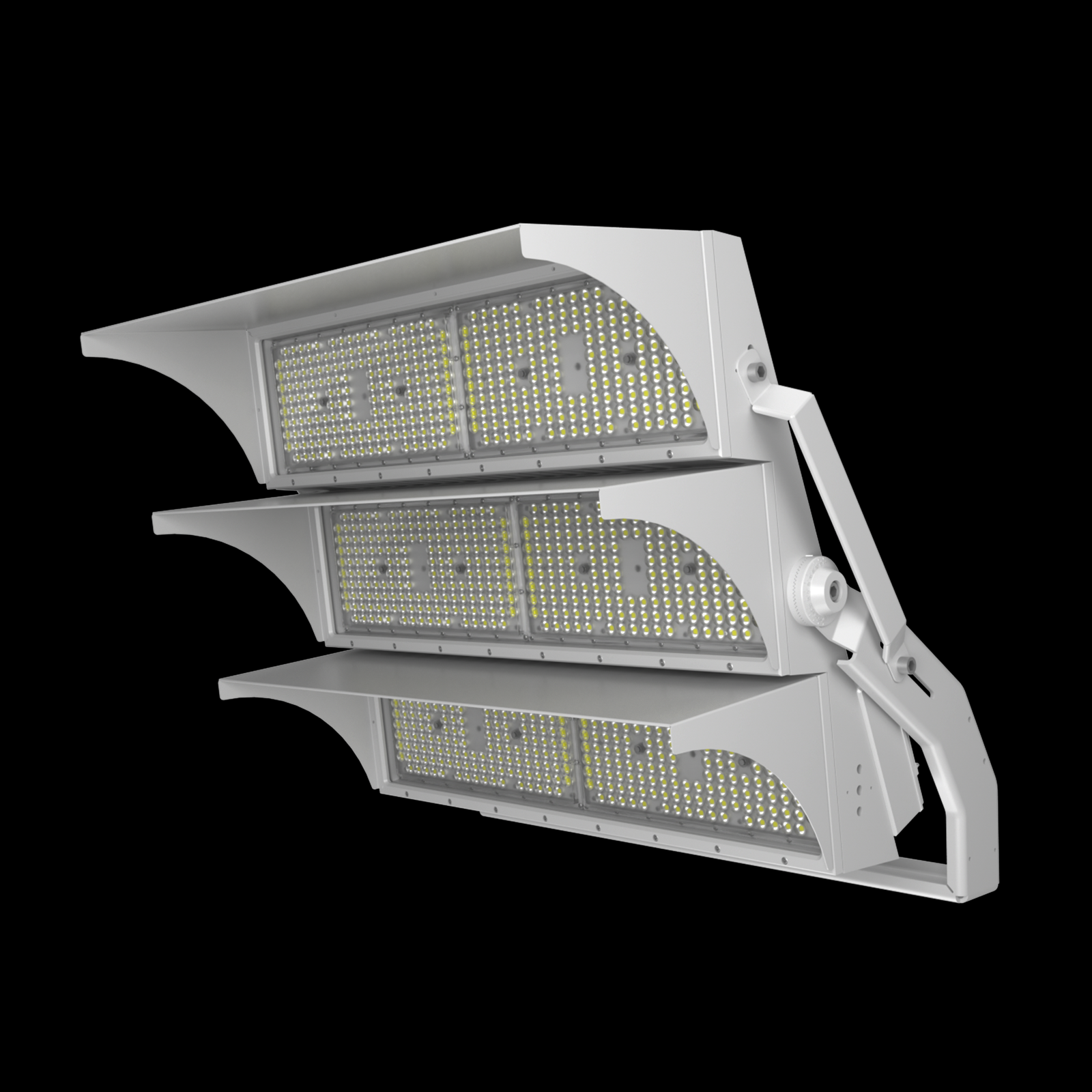

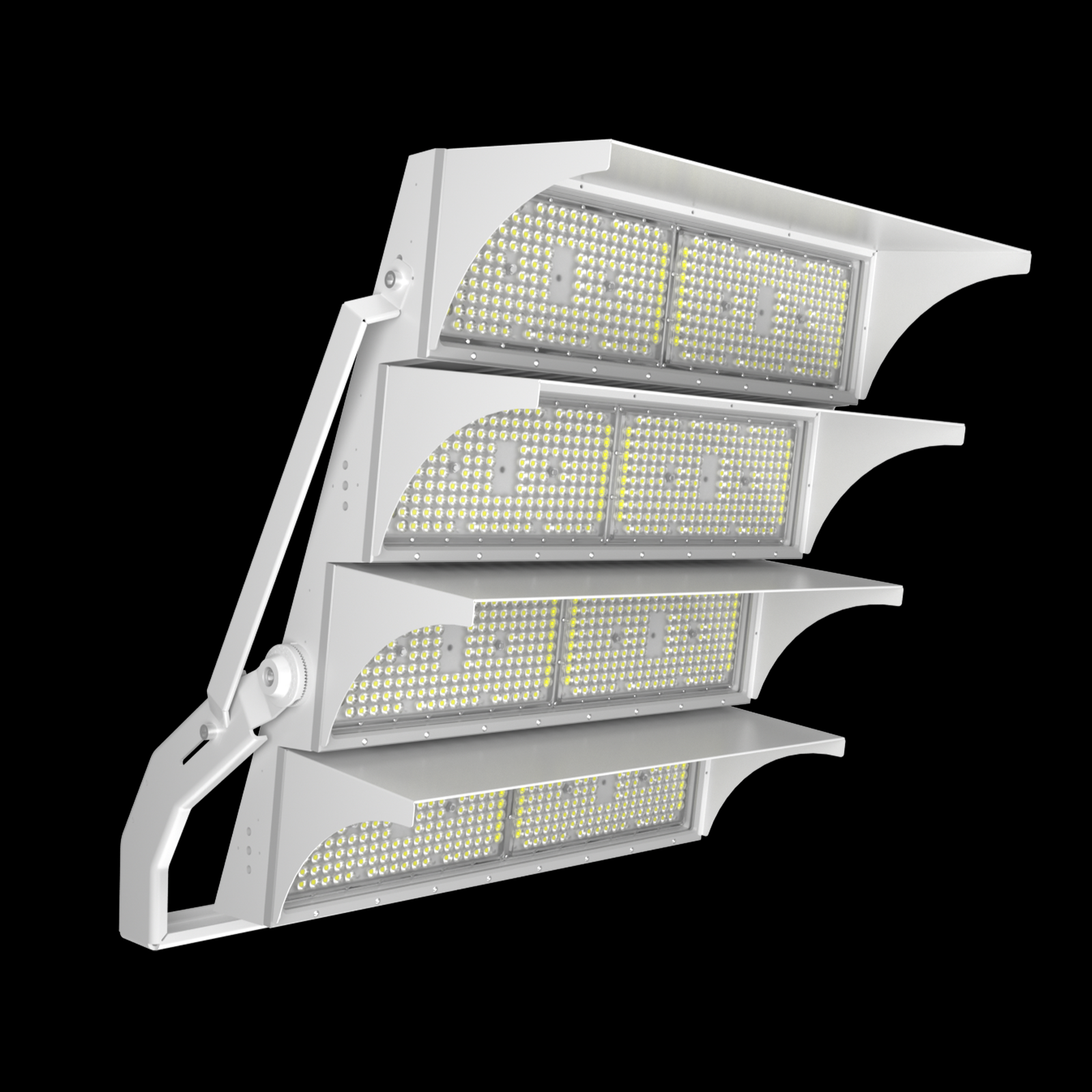

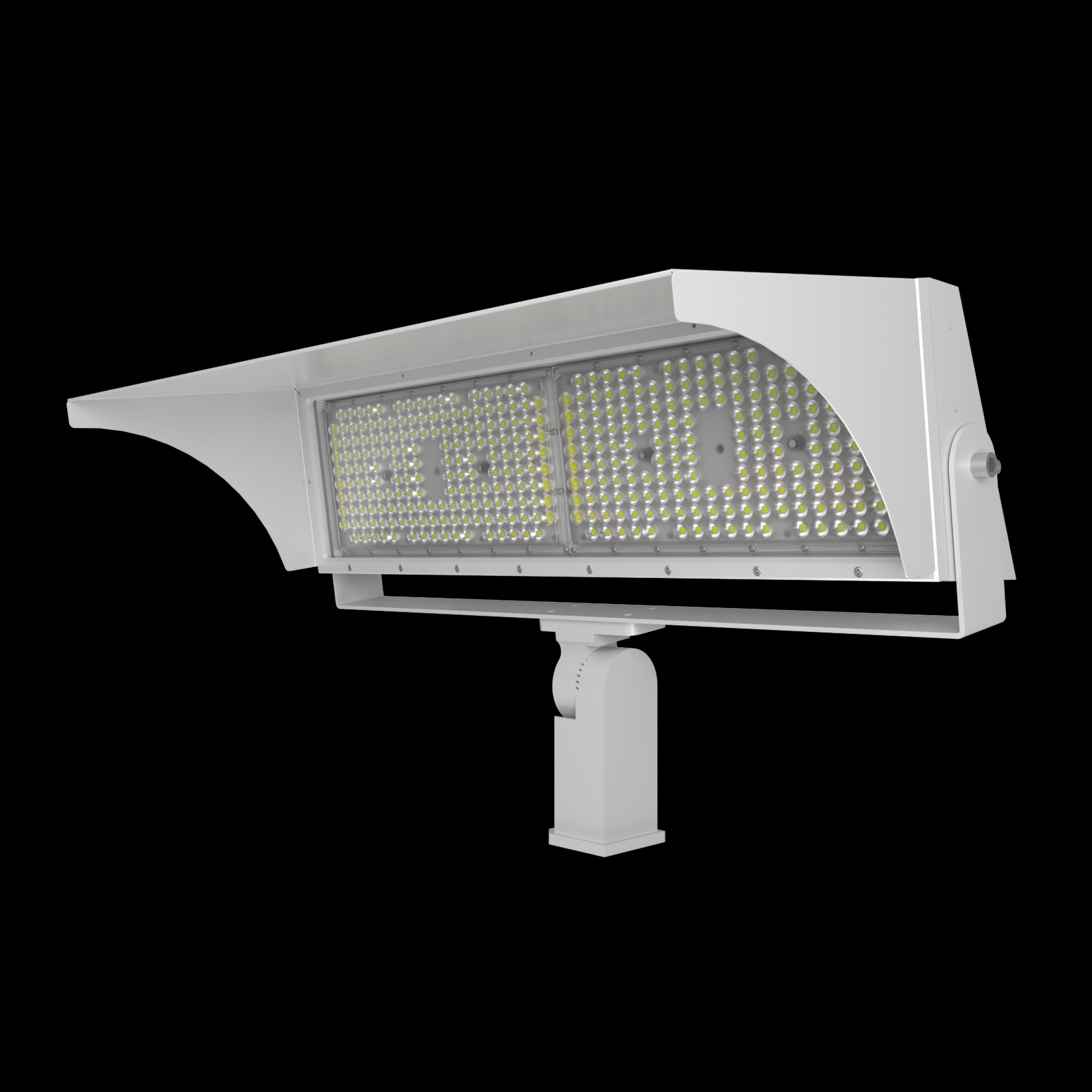

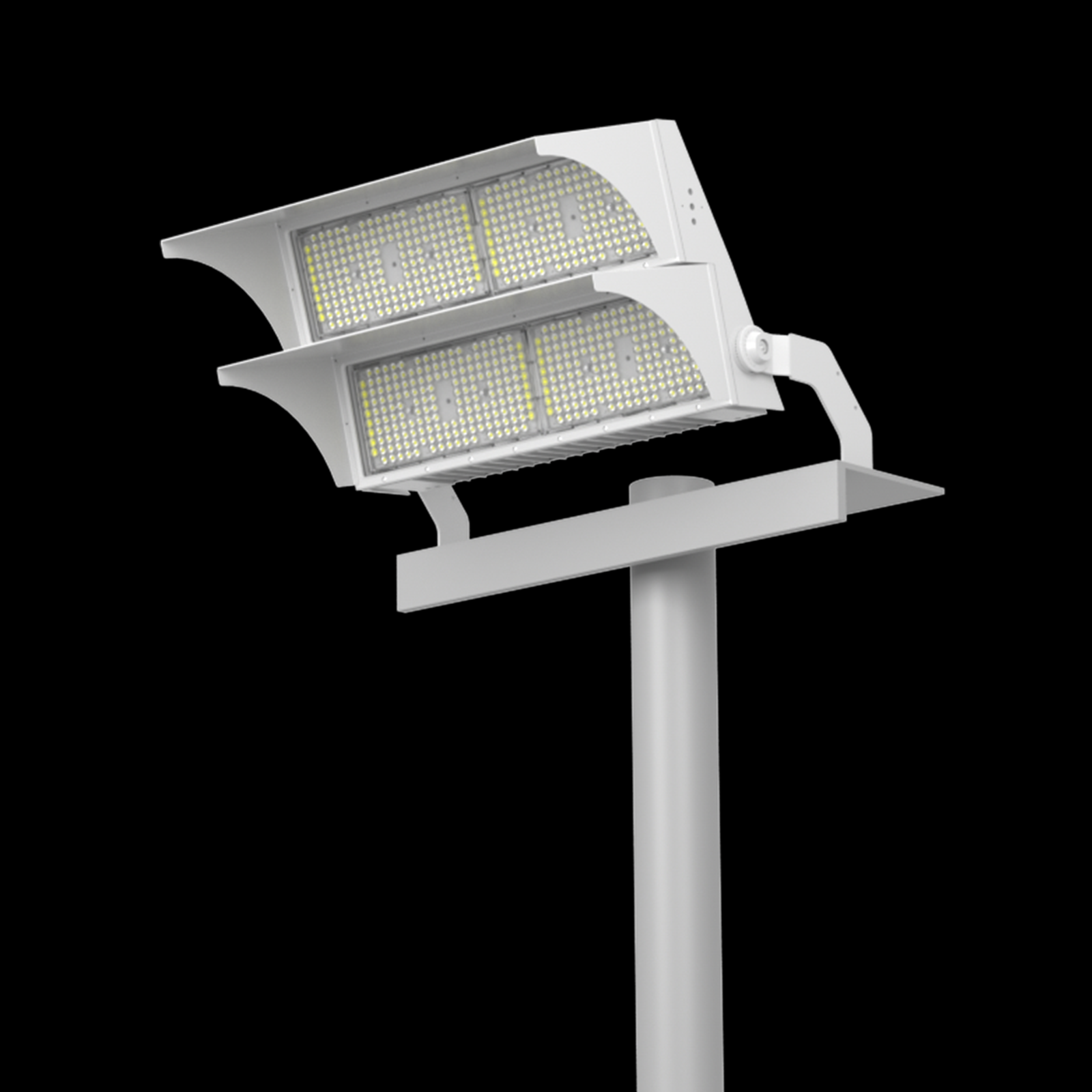

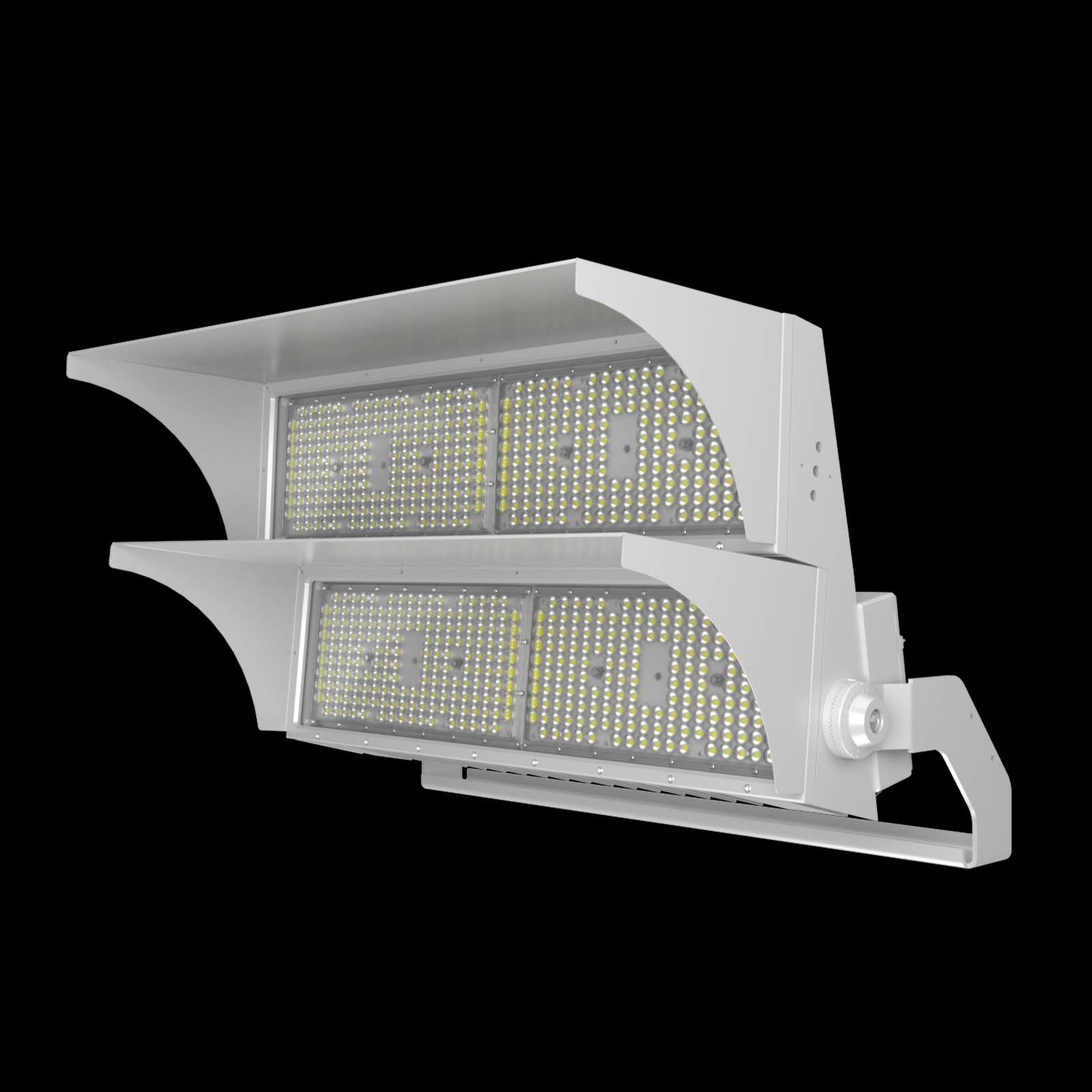

The Stadium Light - FL02 Series reaches new heights! It boasts enhanced efficiency, delivering an impressive 150 lumens per watt. Equipped with a top-of-the-line uPowerTek driver, it offers multiple mounting options and advanced optics, providing 10 and 80 degree beam angles. Comes with a protective hood and optional laser pointer.

Features

  • High Light Efficiency can reach 170 LM/W
  • Multi-beam Angles: symmetric & asymmetric, P45/30°/45°/60°/90°
  • Laser Aiming Device/ Visor /Surge protector available
  • Trapezoidal design, robust construction, for professional sports lighting
  • 2-in-1 cover, IP66 Tempered glass cover optional
  • CE, ROHS, CB, DLC, ETL  Certification

Application

• Outdoor stadia/Airport/Harbor/Container Ports
• Sports training grounds
• Competition grounds (with TV broadcasting)
• Hippodromes

Technical Parameters

Model   Power   (±5%) Dimension PF Beam Angle (Lens) Lumen (±5%) Color Temperature CRI Led Source IP
ZC-FL02A-400W   400W 822*413*185mm >0.95 P45/30°/45°/60°/90° 170lm/w 3000K/4000K
/5000k/6500K		 >70RA Lumileds 3030 IP66
ZC-FL02A-500W   500W 822*413*185mm >0.95 P45/30°/45°/60°/90° 165lm/w 3000K/4000K
/5000k/6500K		 >70RA Lumileds 3030 IP66
ZC-FL02A-600W   600W 822*413*185mm >0.95 P45/30°/45°/60°/90° 160lm/w 3000K/4000K
/5000k/6500K		 >70RA Lumileds 3030 IP66
ZC-FL02B-800W   800W 822*586*185mm >0.95 P45/30°/45°/60°/90° 170lm/w 3000K/4000K
/5000k/6500K		 >70RA Lumileds 3030 IP66
ZC-FL02B-1000W   1000W 822*586*185mm >0.95 P45/30°/45°/60°/90° 165lm/w 3000K/4000K
/5000k/6500K		 >70RA Lumileds 3030 IP66
ZC-FL02B-1200W   1200W 822*586*185mm >0.95 P45/30°/45°/60°/90° 160lm/w 3000K/4000K
/5000k/6500K		 >70RA Lumileds 3030 IP66
ZC-FL02C-1200W   1200W 822*794*185mm >0.95 P45/30°/45°/60°/90° 170lm/w 3000K/4000K
/5000k/6500K		 >70RA Lumileds 3030 IP66
ZC-FL02C-1500W   1500W 822*794*185mm >0.95 P45/30°/45°/60°/90° 165lm/w 3000K/4000K
/5000k/6500K		 >70RA Lumileds 3030 IP66
ZC-FL02C-1800W   1800W 822*794*185mm >0.95 P45/30°/45°/60°/90° 160lm/w 3000K/4000K
/5000k/6500K		 >70RA Lumileds 3030 IP66
ZC-FL02D-1600W   1600W 822*937*185mm >0.95 P45/30°/45°/60°/90° 170lm/w 3000K/4000K
/5000k/6500K		 >70RA Lumileds 3030 IP66
ZC-FL02D-2000W   2000W 822*937*185mm >0.95 P45/30°/45°/60°/90° 165lm/w 3000K/4000K
/5000k/6500K		 >70RA Lumileds 3030 IP66
ZC-FL02D-2400W   2400W 822*937*185mm >0.95 P45/30°/45°/60°/90° 160lm/w 3000K/4000K
/5000k/6500K		 >70RA Lumileds 3030 IP66

Custom Lighting DESIGN

Ensure your project is up to local code and meets required light levels with custom layouts created by the ZC Lighting design team.

Host Higher-Level Games + Tournaments

Meet higher league requirements with proper lighting levels.

10+ Years Led Lighting Experiences

Successful Co-Branding Partnership Cases and Continuous Technologically Advanced Solutions

Are You Struggling With These Typical Light Problems?

❓Faced reduced lifespan due to poor heat dissipation?

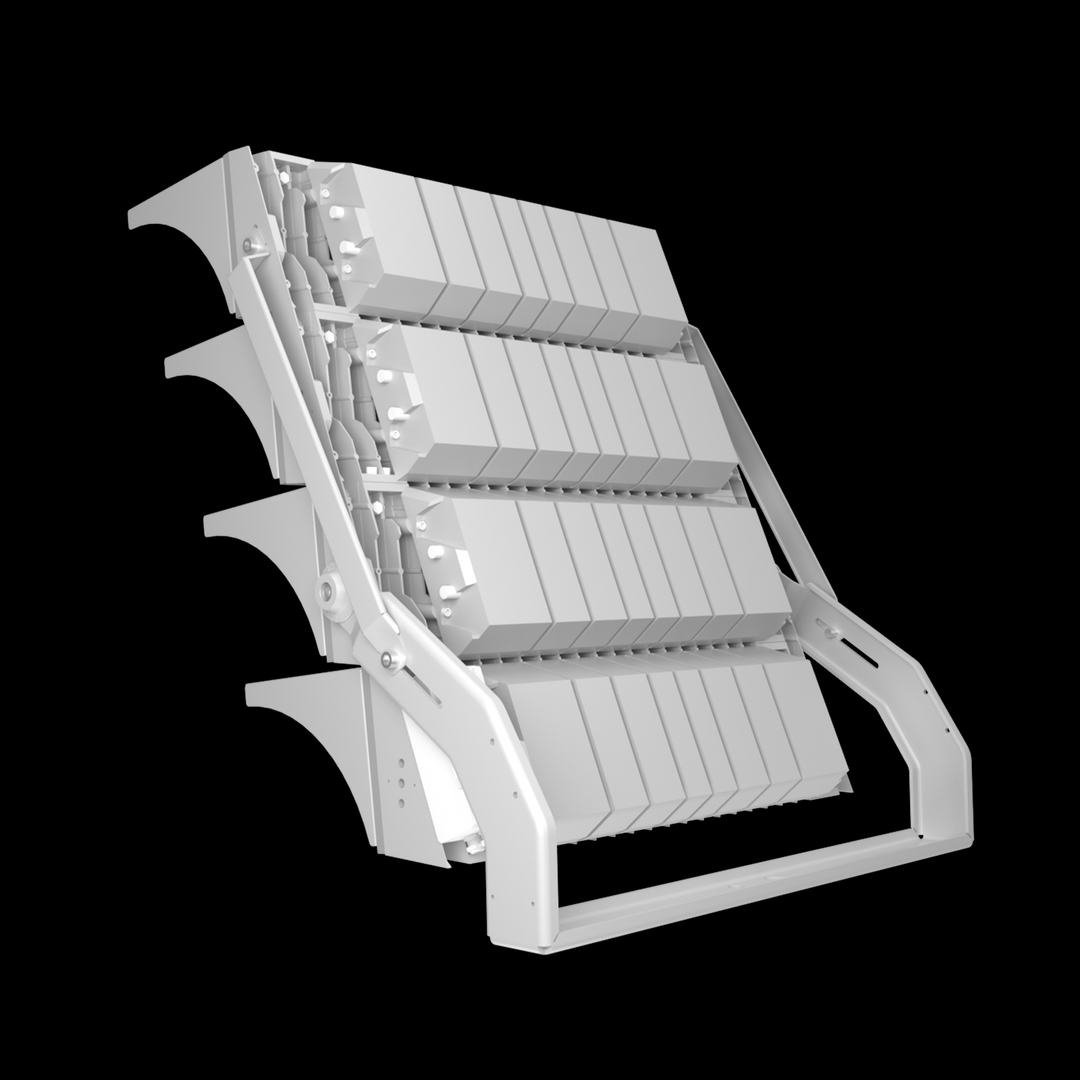

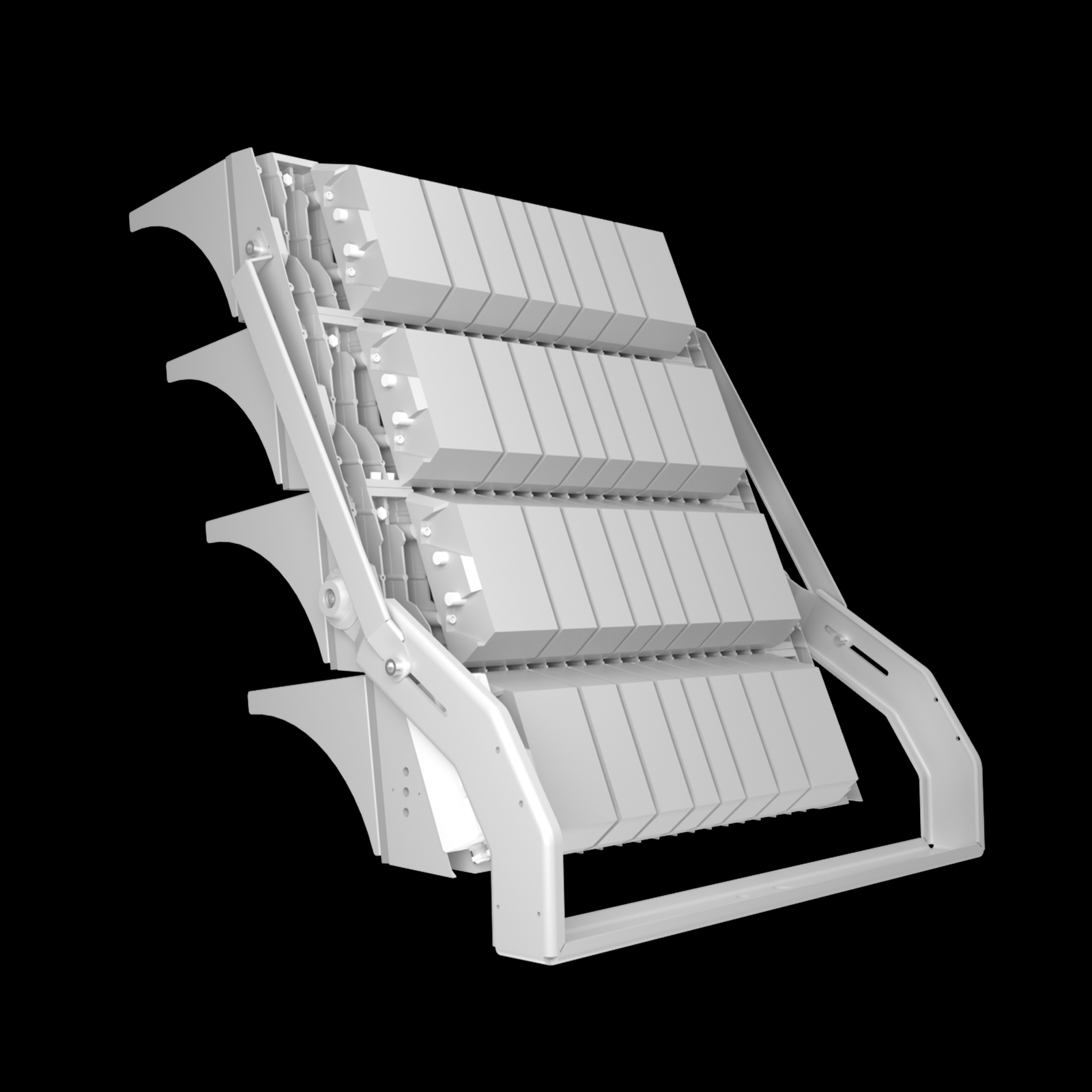

Our lights feature a streamlined shell made of high-purity aluminum, ensuring efficient cooling and extended service life.

❓Worried about them interfering with other equipment?

Our smart control system offers remote monitoring and automatic adjustments, enhancing management efficiency.

❓Noticed luminous decay over time with them?

Our lights use high-efficiency LEDs to delay light decay, maintaining optimal illumination.

How can ZC Lighting customize your LED lighting solutions?

Power & CCT

Choose from various power levels

to meet your lighting needs.

Design Options

Various colors and materials to suit

different environments and needs.

Smart Control

Smart control systems for efficient

remote management.

Versatile Mounting

Various installation methods to suit different environmental needs.

Protective Cooling

High protection and effective cooling design for durability.

Branding & Packaging

Custom branding and packaging to enhance your image.

Certifications

Products are subject to multiple technical certifications and tests such as CE, BIS and ISO 9001 every year according to customer requirements, ensuring compliance with international safety, quality, and efficiency standards.

45 +

Certified Patent

Consider patents for each tech to ensure legal protection and market exclusivity

50 +

Production Equipments

Relevant production processes have been upgraded to international standards

10%

New R&D Expenses

10% of profits are invested annually in the continuous improvement of products

Our Sustainability Efforts for the Next Generation

Renewable Energy

Sustainable Materials

Eco-Friendly Packaging

Energy-Efficient Products
